ASSIGNMENT 1A: PERMIT APPLICATION
ARCC2203: ARCHITECTURAL TECHNOLOGY II
INSTRUCTOR: JAY LIM

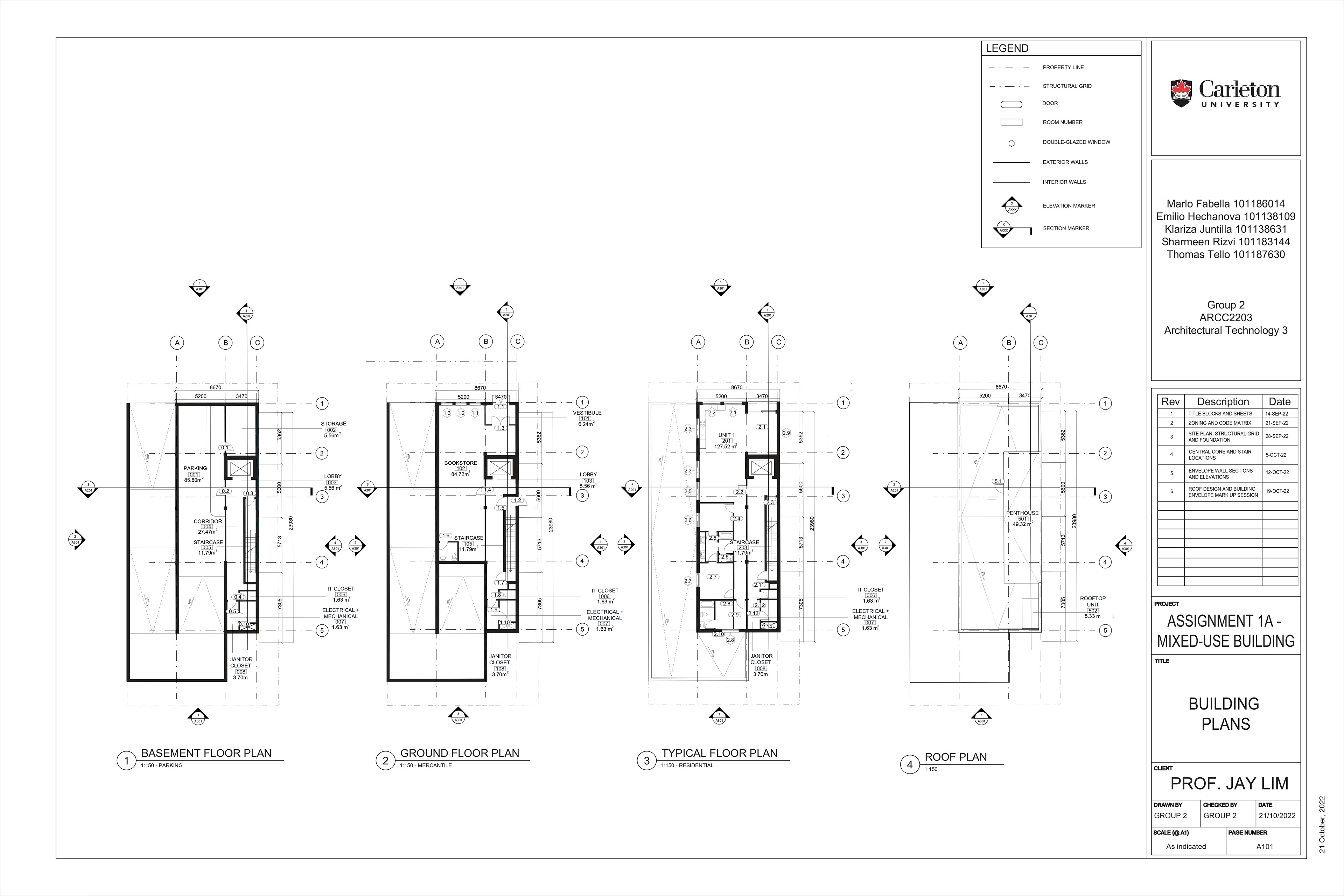

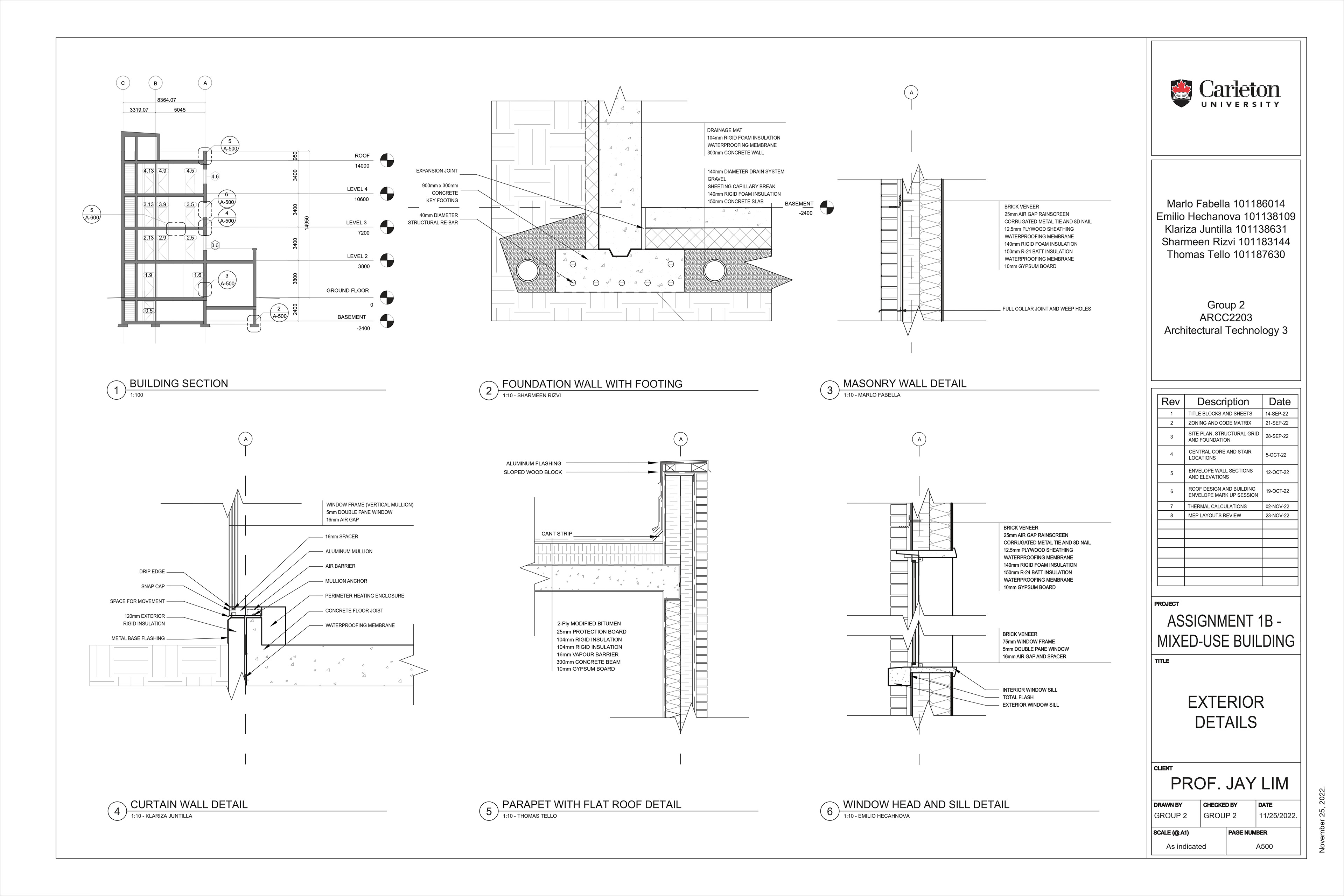

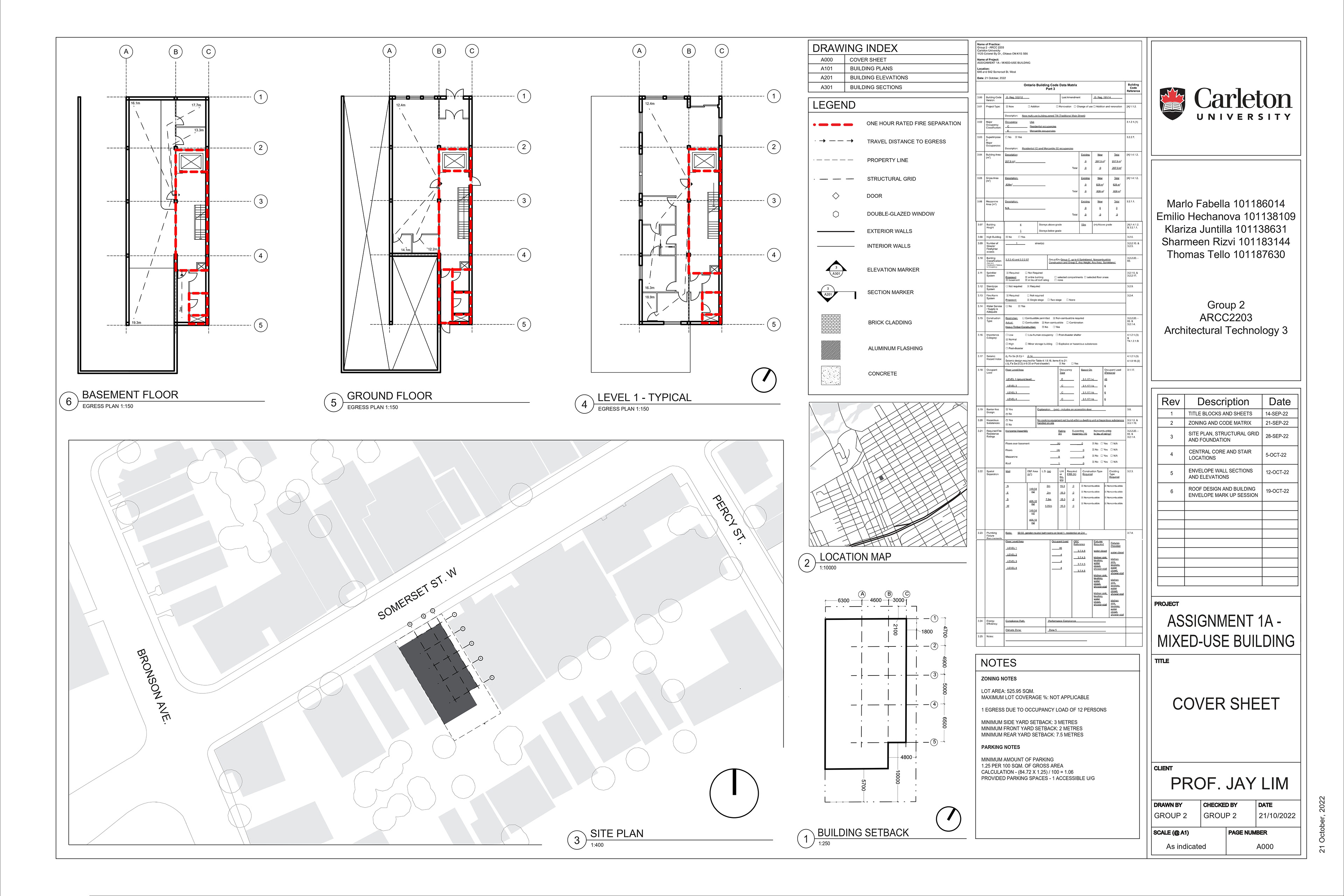

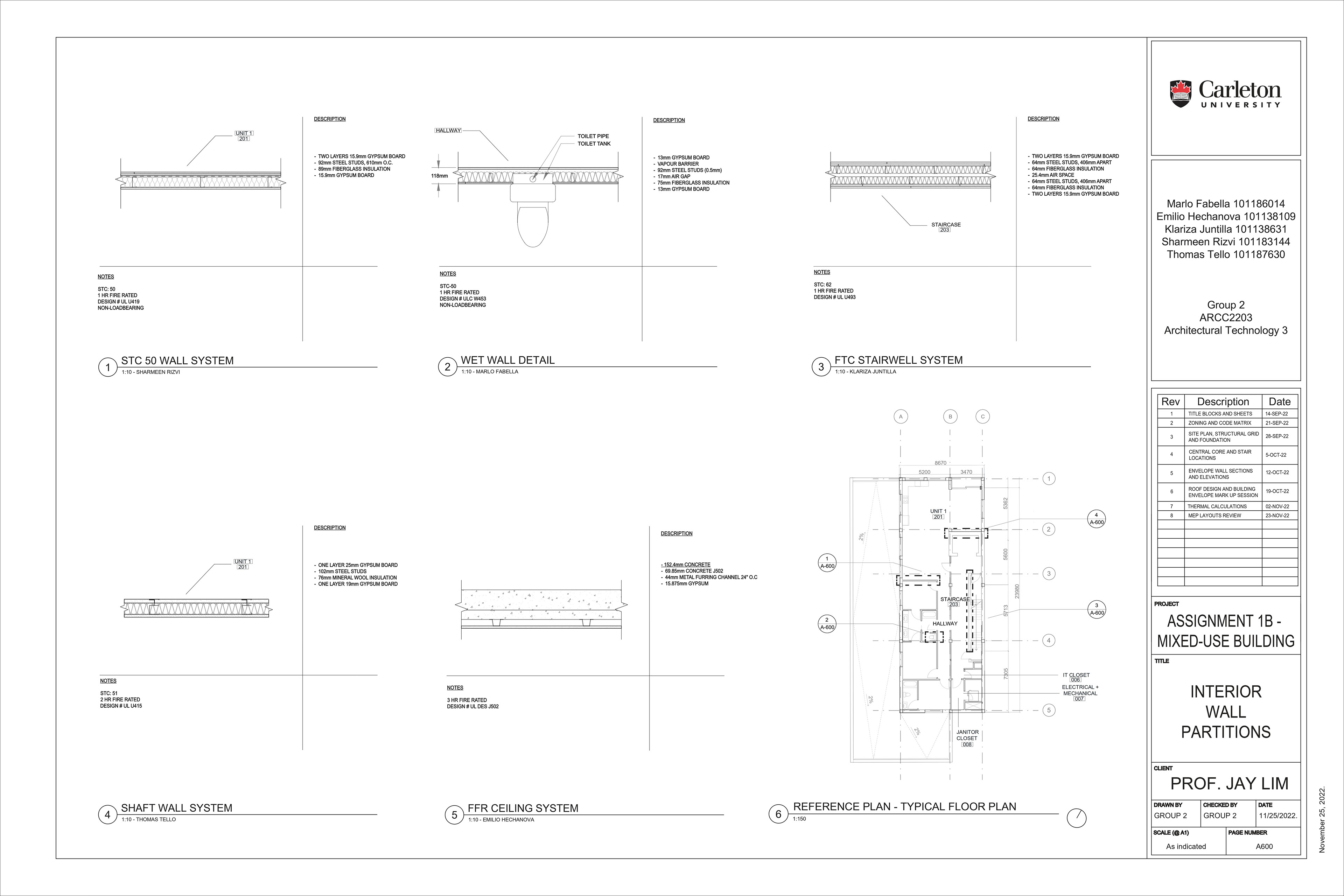

This project aimed to complete a basic permit application for a mixed-use building located at 646 & 642 Somerset St. West in Ottawa, Ontario. The permit application was completed in collaboration with Sharmeen Rizvi, Thomas Tello, Emilio Hechanova and Marlo Fabella. Excerpts can be found below.
"The properties at 646 & 642 Somerset St. West are slated to be developed into a new multi-use building. It is currently zoned TM (Traditional Main Street) and the developer is looking to maximize the buildable area.
The total floor area will be approximately 12,000-20,000 sq.ft. with 4-6 floors above grade and 1 level of basement parking. The ground floor will have commercial space which will be rented out at a later date. The new building must be designed to conform to the existing by-laws. Groups can assume the existing structures will be demolished and a new building will be put on the property."
